Tag Tracker
Plug-and-play 3D optical tracking for real-world to digital-world object manipulation
WHAT IS IT?
CineBridge Tag Tracker is an optical tracking system using a single video or web-camera and a tracking workstation.
WHAT DOES IT DO?
- Save time & money in decision making processes
- Enables non technical individuals to engage in collaborative discussions
- Enables non technical individuals to visualise complex 3D workflows faster
- Removes the need for multiple immersive reality devices
- Accelerates learning and understanding
- Reduces waste & errors
- Helps prevent poor decisions
Details

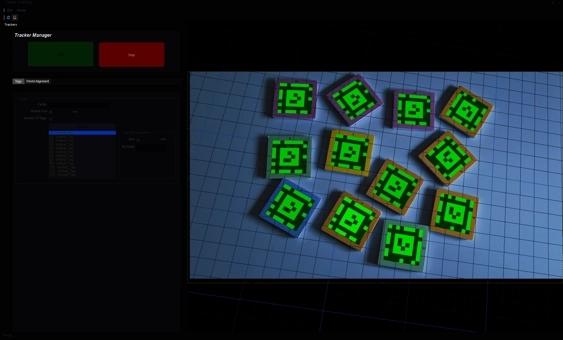

CineBridge Tag Tracker transforms the real world markers into precise measurable 3D data objects — in real time.
By recognising uniquely identifiable visual tags within video camera footage, it instantly calculates the exact position, orientation, and identity of each tag relative to the camera and the real-world coordinate system.
This enables powerful applications across robotics, construction, film, virtual production and research — anywhere accurate camera or object tracking is required.
Whether you’re synchronising digital assets with live camera footage, monitoring equipment on a construction site, or driving augmented-reality overlays, the Tag Tracker provides reliable spatial data that bridges the physical and digital worlds.
Key capabilities include:
Detects and tracks up to 65,000 individual tags in real time.
Works with calibrated cameras — from inexpensive webcams to high-end cinema and scientific cameras.
Delivers sub-millimetre positional accuracy (depending on camera resolution, calibration, and distance from camera).
Operates in low-light, high-contrast, and outdoor conditions.
Provides live 6-DoF (position + rotation) data streams for integration into Unreal Engine, Unity, and custom applications.
Seamlessly aligns real-world cameras to digital coordinate systems for visualisation, simulation, or compositing workflows.
Enables instant setup with plug-and-play hardware — no motion-capture system, markers or specialised lighting required.
In short, the Tag Tracker delivers instant spatial awareness from video sources — giving you the power to “see” with absolute geometric accuracy.
HOW DOES IT DO IT?
- Stand-alone real-time Tracking Workstation
- Tags are printed or displayed images similar to QR-Codes
- A calibrated video camera or web-camera tracks the 3D position and orientation of the Tags
- Move a Tag in the real-world and any assigned "Digital Asset" moves in the digital world
- "Digital Assets" can be anything from 3D models, particle and chemical simulations, animated characters, factory assets or entire buildings to name a few.
Details
At its core, the CineBridge Tag Tracker uses advanced computer-vision algorithms to interpret the visual information captured by a calibrated camera.
Each printed tag contains a unique binary pattern, allowing it to be recognised and decoded even when viewed from extreme angles or partial occlusion.
Capture
A live video feed from a supported camera (webcam, industrial, or film camera) is sent to the Tag Tracker system.Detection
The system locates each visible tag in the image and analyses its geometry and contrast profile to determine its unique ID.Pose Estimation
Using the known intrinsic calibration (lens parameters) and the physical tag size, the software calculates the 3D position and orientation of each tag relative to the camera.Coordinate Alignment
The detected tag poses are converted into a shared world coordinate space, allowing multiple systems, sensors, or virtual environments to stay spatially consistent.Streaming & Integration
The resulting 3D transforms are streamed live via CineBridge Streamline into Unreal Engine, Unity, or external custom applications — enabling real-time AR overlays, motion tracking, and visualisation.
The entire process runs continuously at video frame rates, making the Tag Tracker suitable for real-time virtual production, robotic feedback, and scientific measurement.
Why it’s different:
Unlike other optical tracking systems that require infrared markers or dedicated hardware, CineBridge Tag Tracker is entirely standalone. It uses standard printed tags and pre-calibrated cameras, making it a scalable, lower-cost, and portable solution that delivers professional-grade accuracy.
WHY DO I NEED IT?
- No Motion Capture System
- No Calibration
- No Complex Setup
- Plug & Play
- Extremely Robust Tracking
- Live Augmented Reality Overlay
- Harsh Environmental Tolerant
- Handles Extreme Low Light Conditions
- Mix Tags of Different Size & Colour
Details
Modern workflows demand precise spatial alignment between the real world and the digital world.
Whether you’re calibrating autonomous systems, or tracking assets across a physical site, accurate camera-to-world positioning is essential.
The CineBridge Tag Tracker eliminates the complexity, cost, and limitations of traditional tracking systems by providing a marker-based vision solution that’s simple, scalable, and incredibly fast to deploy.
You need CineBridge Tag Tracker if you want to:
Accelerate setup — go from calibration to live tracking in minutes, with no special rigs, motion-capture systems, or IR lighting.
Work anywhere — track reliably in low light, high contrast, or harsh outdoor conditions using a single calibrated camera.
Integrate seamlessly — stream live data directly into Unreal Engine, Unity, or custom written applications using CineBridge Streamline.
Reduce costs — achieve optical tracking accuracy without expensive marker arrays or proprietary camera systems.
- Empower teams — enable engineers, artists, and researchers to visualise spatial data in real time and make confident, data-driven decisions.
CineBridge Tag Tracker provides real-time spatial intelligence — turning an ordinary camera into precise measuring instrument.
It’s the bridge between your physical environment and your digital content pipeline.
Highlights
- Pre-Configured Workstations
- Pre-Calibrated Cameras
- Ultra-Low Latency
- Works Online and Locally
- Integrates Seamlessly with Unity3D and Unreal Engine
- Extreme Angles of Incidence Between Camera & Tags (~80 Degrees)
- Near Pitch Black Tracking
- Colourised Tags possible (including Green on Green - 85% Green instead of Black, 100% Green instead of White)
- Real Time 3D Camera Re-Projection from Tags and Chessboards
Applications
Aerospace
Assembly line tracking, maintenance AR overlays, component position validation, pilot training simulators.
AEC (Architecture / Engineering / Construction)
On-site AR visualisation, construction progress tracking, equipment positioning.
Agriculture & Environmental Tech
Position tracking for autonomous machinery and drones.
Automotive
AR-assisted design reviews, autonomous vehicle lab testing, production line calibration.
Autonomous Systems
Validation of navigation systems for drones, AGVs, and mobile robots.
BIM (Building Information Modelling)
Real-world spatial calibration for BIM model alignment and validation.
Defence Contracting / Government R&D
Sensor fusion, battlefield simulation, robotics R&D.
Digital Twins (Industry 4.0)
Using Tags to plan layout of physical environments / layouts in factories, buildings, and cities.
Education
STEM / engineering lab demonstrations, vision research, interactive learning.
Entertainment (Film / TV / Games / Virtual Production)
Camera tracking, object tracking, virtual set alignment, motion capture character placements, mixed-reality integration.
Medical Research & Healthcare
Motion tracking for biomechanics, surgical training simulators, AR-assisted procedures.
Manufacturing
Robotics calibration, part positioning, quality control, AR-assisted assembly.
Military & Defence
Simulation, training environments, vision-guided robotics, situational awareness.
Metaverse & Virtual Collaboration
Physical object tracking for hybrid real/virtual workspace tools.
Museums / Interactive Exhibitions
Physical-to-digital interaction tracking for installations.
Retail / Experience Design
AR mirrors, interactive displays, product positioning systems.
Research & Academia
Vision research, robotics courses, human-computer interaction studies.
Robotics
SLAM benchmarking, indoor navigation, robot arm calibration, swarm coordination.
Security / Surveillance
Visual calibration, tracking validation for smart cameras.
Simulation & Training
Vehicle, flight, and industrial simulators using real-world camera tracking data.
Smart Cities / Infrastructure
Construction monitoring, maintenance visualization.
Surveying & Geospatial Mapping
Marker-based photogrammetry, camera pose estimation, indoor mapping.
Sports Science & Biomechanics
Real-time body motion tracking, movement analysis.
XR / Mixed Reality (Enterprise)
Physical object tracking for hybrid real/virtual workspace tools.
Hardware
Pre-Calibrated Cameras
We provide a wide range of cameras to suit all applications:
Web-Cameras
Most suited for Offices, Board Rooms, and portable applications.
Small Machine Vision Cameras
For high quality tracking where synchronisation to other equipment is required such as Virtual Production for Film and TV.
Pro Machine Vision Cameras
For high resolution and high speed tracking. Mainly industrial applications.
Cinematography Cameras
In-camera tracking for Feature Film and Television Productions.
Pre-Configured Workstations
Workstations are customised on a per client basis.
Laptop
Ideal for Office or remote working applications.
Desktop
Office or Laboratories.
Rack-Mount
Permanent installations.
Ruggedised
On-site or studio based applications.
Accessories - Tags
Tag can be supplied in a variety of sized and materials:
- Premium quality paper printed
- Canvas (useful for outdoors)
- 3D printed (ruggedised)
- Metal backed
- Digitally projected
- Digital images on devices such as phones and tablets
- Colourised Tag
Services
Application Development
We develop custom applications tailored to your specific requirements.
Custom Camera & Lens Calibration
We provide custom calibration services for any camera and lens package.
Downloads
CineBridge Tag Tracker Software
Windows 10/11 application for Tag Tracking.
Currently the application is only installed on Pre-Configured Workstations and with accompanying Pre-Calibrated Cameras (see below).
Please contact us for more information of to request a demonstration.
Streamline Plug-Ins
Pro versions of Plug-Ins coming soon… don’t miss out on being an early adopter.

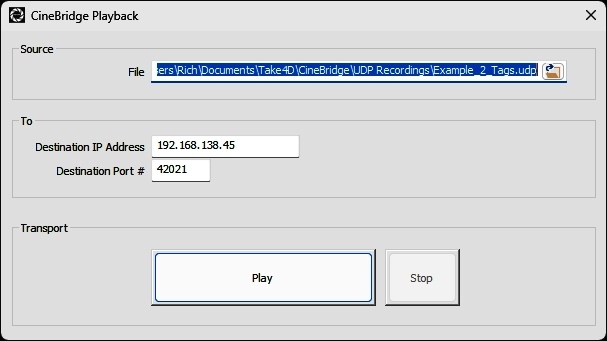

CineBridge Playback Application
Windows 10/11 application for the playback of pre-recorded Tag Tracking data.
This application re-broadcasts the UDP tracking data to Streamline Plugins.
Use this to text your Unreal Engine and Unity applications.
